3-axis force sensor in a cylindrical design with a diameter of 125mm for measuring the force in 3 directions in space. Measuring ranges 30kN and 40kN for the radial force Fx, Fy and 90kN and 120kN for the axial force Fz.
3-axis force sensor in a cylindrical design with a diameter of 125mm for measuring the force in 3 directions in space. Measuring ranges 30kN and 40kN for the radial force Fx, Fy and 90kN and 120kN for the axial force Fz.
Art.Nr.: 8177

K3A125 30kN/90kN

  • type: 3-axis force sensor
  • nominal force: Fx: 30 kN, Fy: 30 kN, Fz: 90 kN
  • accuracy class: 0.2
  • dimensions: Ø125 mm x 90 mm
  • force transmission: 8 x internal thread M12x1.75
  • connection: integrated round plug-in connector (M12), 12-pin, male
  • material: steel

required accessories:

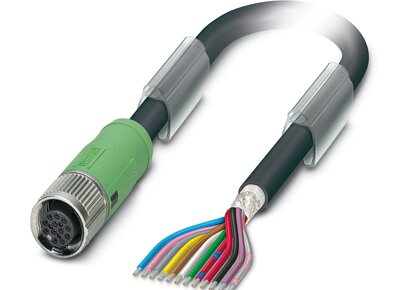

  • connector 12p/f/M12/5,0/ME

recommended accessories:

  • measuring amplifier GSV-1A4 SubD37, GSV-4USB SubD37, GSV-8DS SubD44HD, GSV-8AS and the appropriate connector assembly
All details
Configure product:
Art.Nr.: 8177

K3A125 30kN/90kN

  • type: 3-axis force sensor
  • nominal force: Fx: 30 kN, Fy: 30 kN, Fz: 90 kN
  • accuracy class: 0.2
  • dimensions: Ø125 mm x 90 mm
  • force transmission: 8 x internal thread M12x1.75
  • connection: integrated round plug-in connector (M12), 12-pin, male
  • material: steel

required accessories:

  • connector 12p/f/M12/5,0/ME

recommended accessories:

  • measuring amplifier GSV-1A4 SubD37, GSV-4USB SubD37, GSV-8DS SubD44HD, GSV-8AS and the appropriate connector assembly
All details
Configure product:
Artikelbeschreibung
  • type: 3-axis force sensor
  • nominal force: Fx: 30 kN, Fy: 30 kN, Fz: 90 kN
  • accuracy class: 0.2
  • dimensions: Ø125 mm x 90 mm
  • force transmission: 8 x internal thread M12x1.75
  • connection: integrated round plug-in connector (M12), 12-pin, male
  • material: steel

required accessories:

  • connector 12p/f/M12/5,0/ME

recommended accessories:

  • measuring amplifier GSV-1A4 SubD37, GSV-4USB SubD37, GSV-8DS SubD44HD, GSV-8AS and the appropriate connector assembly
Product description

The K3A 3-axis sensor is designed for measuring force in three mutually perpendicular axes.
This product group has a wide measurement ranges for the forces.
The K3A S3-Axis Force Sensors are developed for the following applications:

  1.     Robotics,
  2.     Medical technology,
  3.     Measurements in automation technology,
  4.     Mounting and Assembling of Parts in Production Lines,
  5.     6-Axis Force/Torque Platforms consisting of 4x K3A Sensors,
  6.     Research and Testing.

The calibration document contains the individual calibration factors and crosstalk data of the sensor.
The crosstalk optionally can be minimized by application af an additional error compensation matrix.
The K3A sensors can be operated without additional compensation matrix.

During the application, please take care to ensure that the maximum bending moments are not exceeded.
The lever arms are calculated from the sensor origin, which is in the center of the mounting surface (on the top surface).
