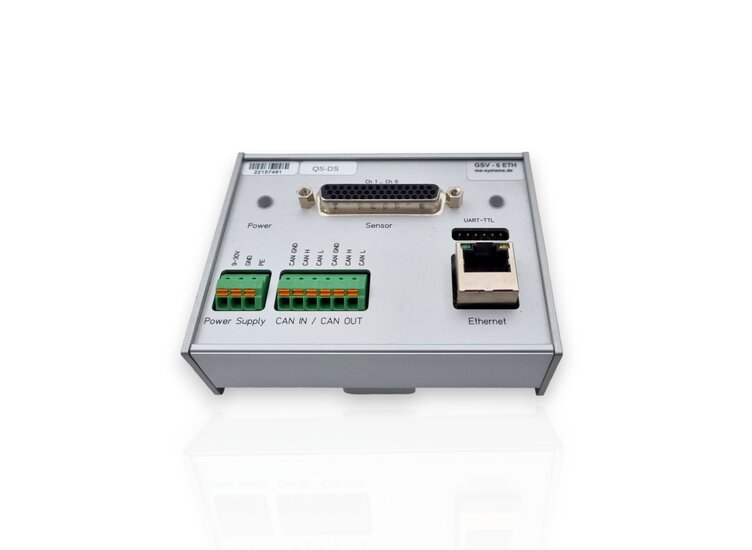

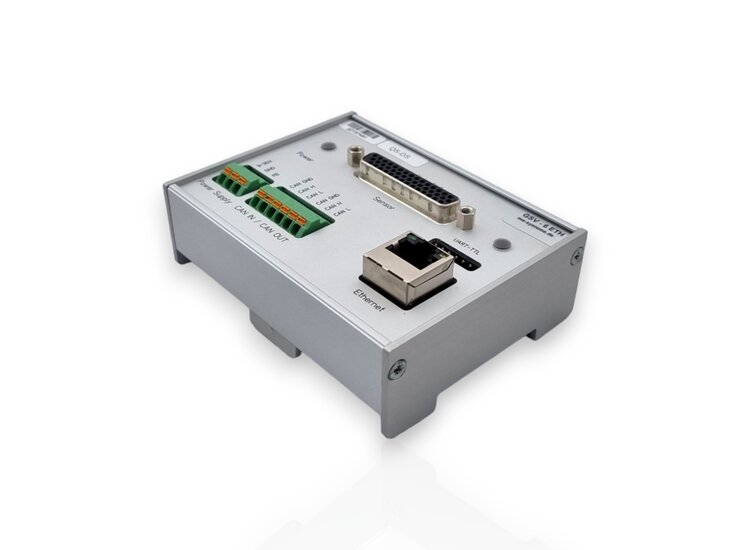

The GSV-6H6 CAN/SubD44HD measuring amplifier is a 6-channel measuring amplifier for strain gauges with a CAN interface, as well as with Ethernet and UART port 3.3V.
Sensors with full-bridge strain gauges are connected via the SubD44HD socket. The SubD44HD socket makes the GSV-6H6 suitable for connecting force/torque sensors.

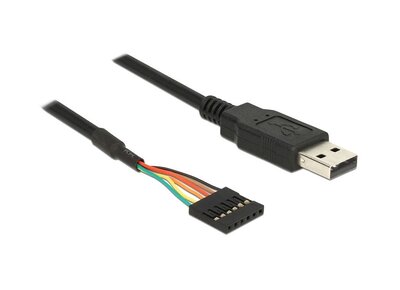

The GSV-6H6 CAN/SubD44HD measuring amplifier is supplied with 9 V DC to 26 V DC via the connection block with spring terminals. The UART port 3.3V is suitable, for example, for connecting a UART-USB converter (available as an accessory) or for connecting a modem. The Ethernet port is configured as a "serial port client", but can be configured at the factory for other protocols. The supply and the DMS supply are galvanically isolated up to a voltage of 2.5 kV.
The recording of measurement data is possible both via USB port (accessory needed) and via the CANbus with the GSVmulti software. The GSVmulti software allows the reading, recording and visualization of measurement data via the CANbus with the help of a "PCAN-USB" converter (available as an accessory).
