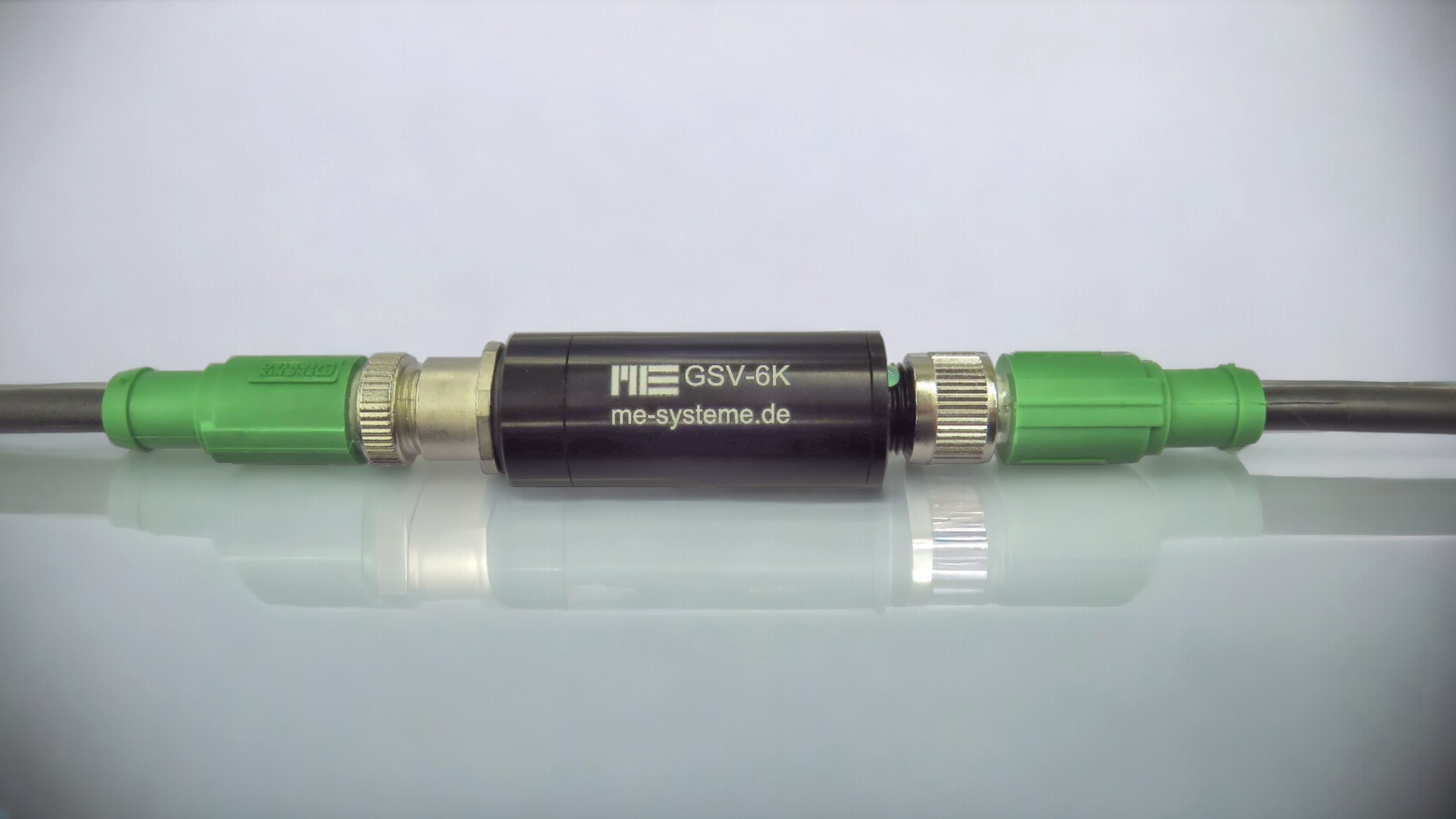

Configuration of GSV-6L and GSV-6K

The GSV-6L and GSV-6K measuring amplifiers are configurable with regard to the output type (current output or voltage output), filter characteristics, and other properties. Configuration is performed either at the factory upon ordering or at any time via the "Tare" and "Scale" lines. In configuration mode, the "Tare" line has the "Up" function (go to the next menu item). In configuration mode, the "Scale" line has the "ENTER" function (confirm the current display).

By default, the menu display is set to a voltage output of ±10V. The GSV-6 can be configured to display a current output of 0-20 mA if the analog output type is set to 4-20 mA or 0-20 mA.1 In this case, the following conversion applies to the voltage display mentioned here: Voltage reading [V] = Output current [mA] -10 Output current [mA] = Voltage reading [V] +10 Once in configuration mode, an output voltage of -1.1 volts (or 8.9 mA) is displayed. The voltage of -1.1 volts corresponds to a selection for "Set input sensitivity". Pressing "UP" changes the voltage to -2.2V (or 7.8 mA). This corresponds to a selection for "Set frequency". The table shows the "main menu" with voltages from -1.1 to -9.9 volts.

The video https://youtu.be/U4Hsd2GYHJA shows the configuration of a GSV-6 amplifier with analog output using the so-called "ClickrClackr" menu.

Operating instructions

ba-clickrclackr.pdf

Zero setting and scaling

The most commonly used function of the GSV-6L and GSV-6K is to zero the output signal.

Triggered by a digital control signal, the measuring amplifier sets the output signal to e.g. 0V, or 5V, or 4 mA, or 12 mA, depending on the selected configuration.



The zero setting function is triggered on the falling edge of the control signal "Tare" when it is connected to the power supply for at least 2 seconds.

The use of the scaling function is usually only required at the factory or in the calibration laboratory or when setting up the GSV-6L or GSV-6K.

The scaling function is triggered on the falling edge of the "Scale" control signal when it is connected to the power supply for at least 3 seconds.

The output signal is scaled (when a load is applied!) to e.g. 10V, 5V, or 20mA.

The Video https://youtu.be/6o_vuBx8O8k shows the application of the "Tare" and "Scale" functions
