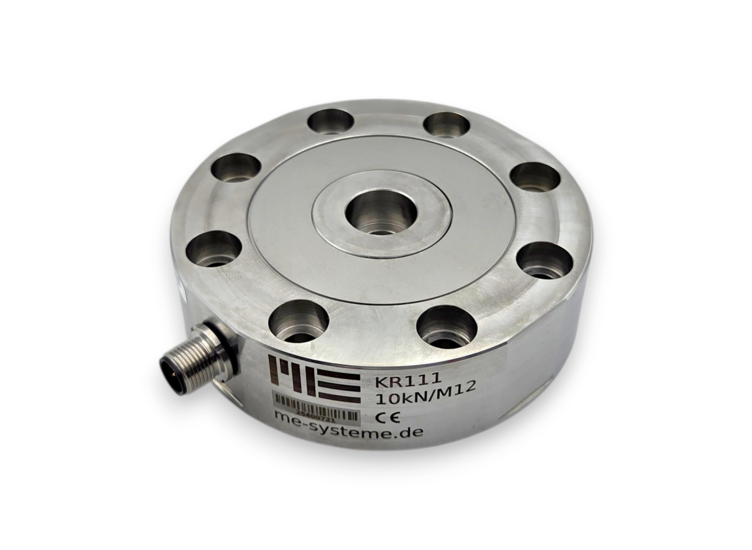

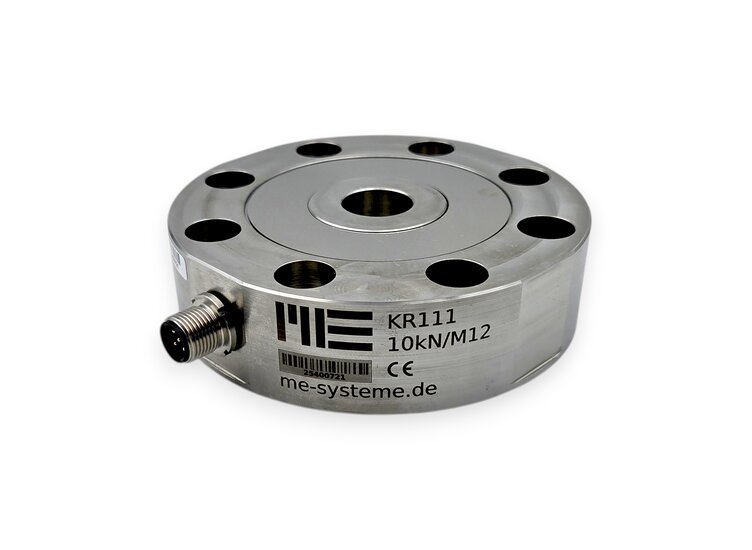

Ring force sensors are precise sensors for measuring tensile and compressive forces in testing and automation applications. Their particularly flat design makes them ideal for measurement tasks with limited installation space and allows for easy integration into existing designs. Ring force sensors of this type are frequently used in test benches, assembly lines, and material testing applications where a compact design and reliable measurements are crucial.
A key advantage of these sensors is their convenient mounting from the tool side. This allows the sensor to be integrated directly into the force transmission without the need for complex mounting fixtures. The ring shape enables uniform and reproducible force application through the central opening, resulting in stable and precise measurement results.
With their high accuracy, these sensors deliver highly precise measurement data for demanding measurement and testing tasks. The robust mechanical design ensures reliable operation even under industrial operating conditions and repeated load cycles.
A key advantage of these sensors is their convenient tool-side mounting. The combination of compact design, easy integration and high measuring accuracy makes ring force sensors an ideal solution for applications in quality assurance, material testing, automation technology and mechanical engineering.
Optional special version
- Protection class IP68: from rated force 200 N
- Pressure range up to 8 bar
- Suitable for cleanrooms
