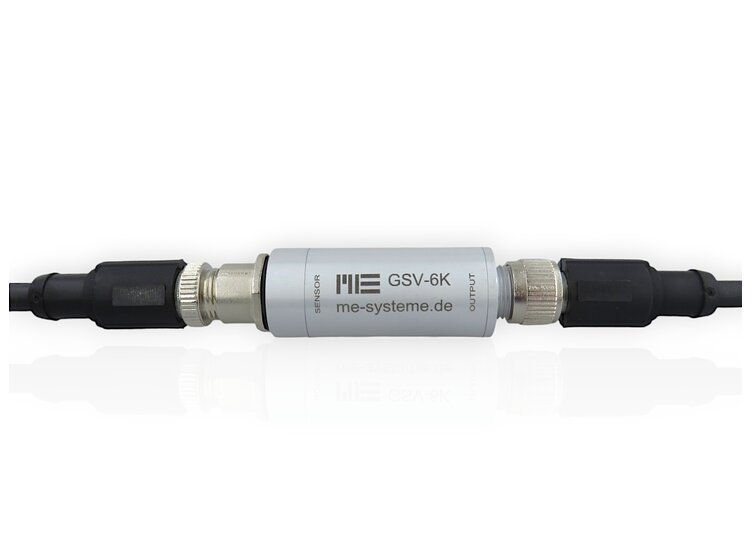

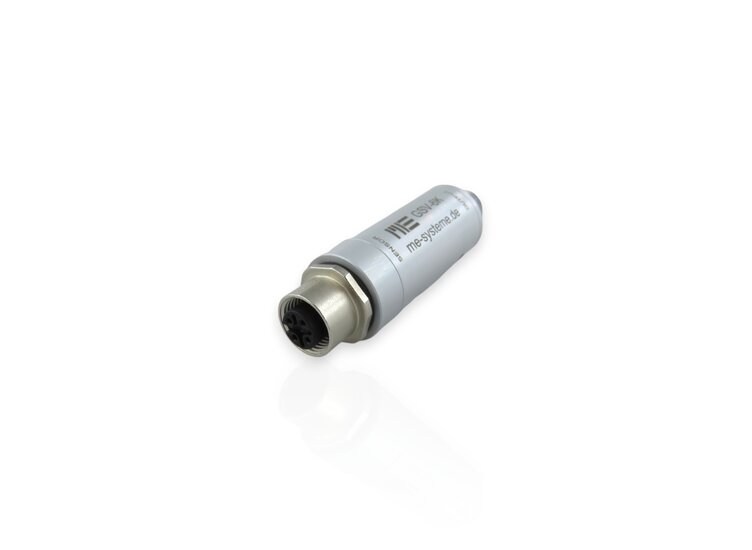

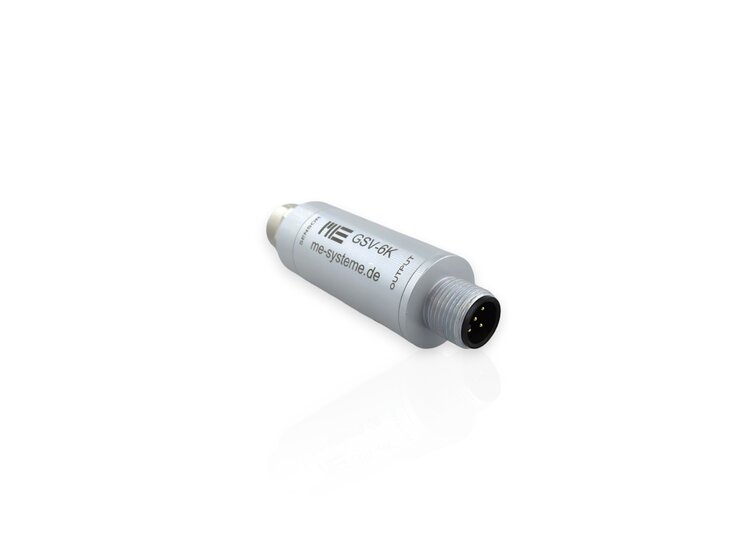

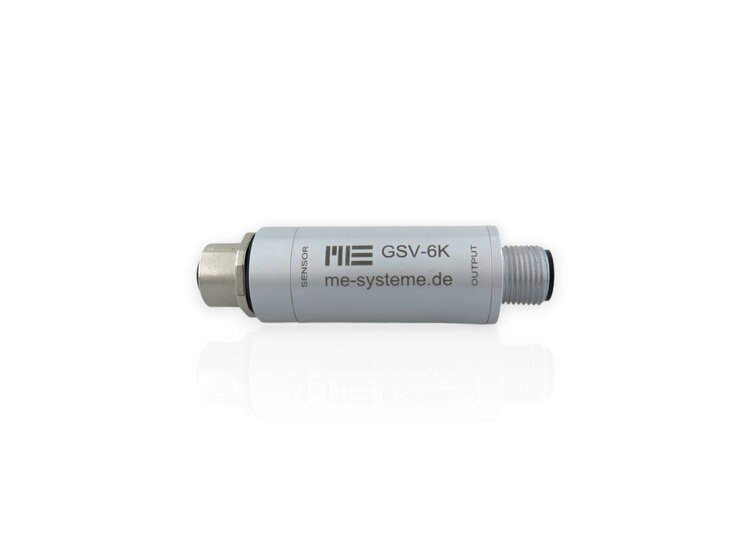

The measurement amplifier GSV-6K includes a strain gauge input via a 5-pin M12 casing bushing and an analogue output via a 5-pin M12 housing connector.
The GSV-6K is used to convert the bridge signal from force, torque or strain sensors to an analogue output signal.
The electronic data sheet of the sensor can be read via a TEDS interface. The measurement amplifier scales the output signal to the end value of the set output signal using the TEDS interface.
The output signal can be set as a voltage output or current output.
The outputs 0...10V, ±10V, 0...5V, ±5V, 4...20mA, 0...20mA can be set using the "Tare" and "Scale" control cables.
Similarly, an offset or sampling frequency can also be set.
