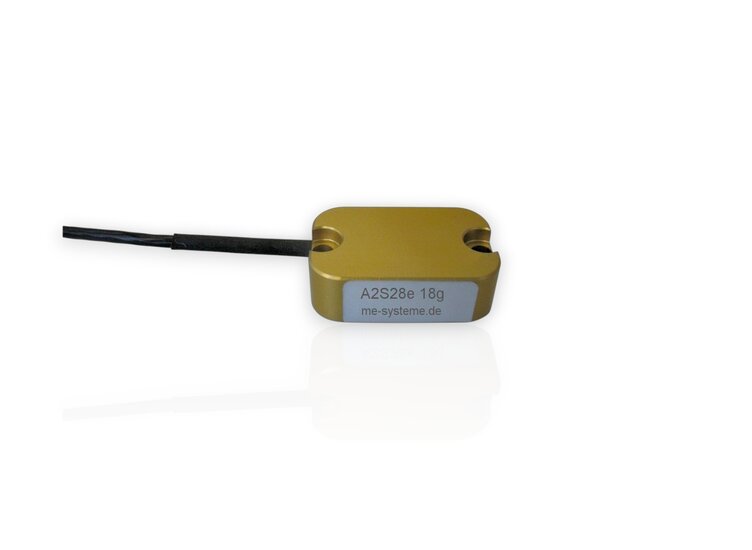

The A2S28e is a 2D acceleration/inclination sensor designed for both static measurements (starting at 0 Hz) and dynamic measurements.
It provides an output voltage (offset) of 2.5 V at 0° inclination and an output signal (slope) of 1 V/g ±5%. It is available for measurement ranges of ±1.7g and ±18g. The supply voltage ranges from 5 V to 28 V DC, and current consumption is approximately 5 mA. The typical noise floor is 110 μg/√Hz, corresponding to a resolution of approximately 1 mg or 0.06° of inclination. The standard version is configured for a bandwidth of 1000 Hz. Factory-customized versions with lower bandwidths—such as 30 Hz—are available for applications requiring a static inclination sensor.
Optional special version
- Protection class IP68
- Pressure range up to 8 bar
