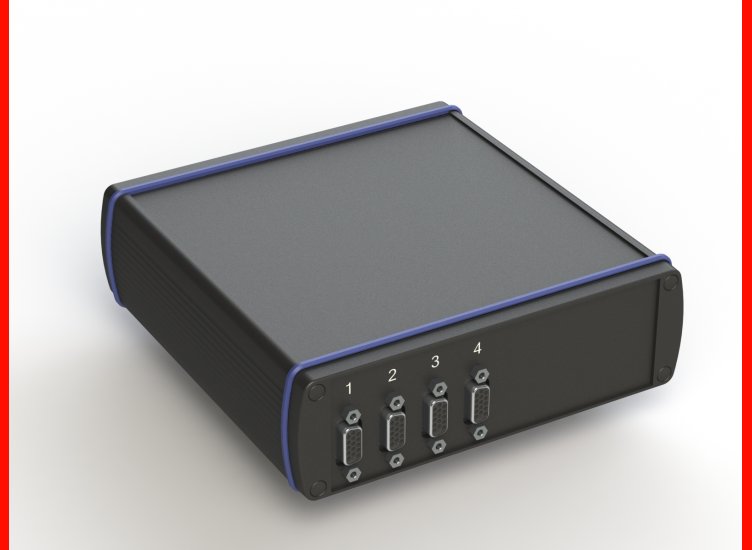

The 4-channel measuring amplifier GSV-8 is characterized by particularly high resolution at data rates from 1 Hz to 96000 Hz.
The 4 channels are recorded simultaneously, without multiplexing.
As communication interfaces USB port, optional EtherCAT or CANbus are available.
The device has 8 configurable analog outputs (± 10V et al and 4 ... 20mA).
An UART interface is used to control the measuring amplifier via a Raspberry PI.
There are 4 analog inputs. They are individually configurable as:
- strain gage input for full bridges in 4- and 6-wire technology
- strain gage input for half-bridges
- strain gage input for quarter-bridge 120 ohms, 350 ohms, 1kOhm
- Single-ended input ± 10V
- Input for PT1000 temperature sensor,
- Input for thermocouple type K.
Sensors with IEPE (ICP) interface can be connected via an adapter plug with BNC socket, e.g. IEPE acceleration sensors, IEPE force sensors, etc.
