        Reading and Writing TEDS

        Reading and writing TEDS is possible with the measuring amplifiers GSV-8DS or GSV-8AS and GSVmulti.

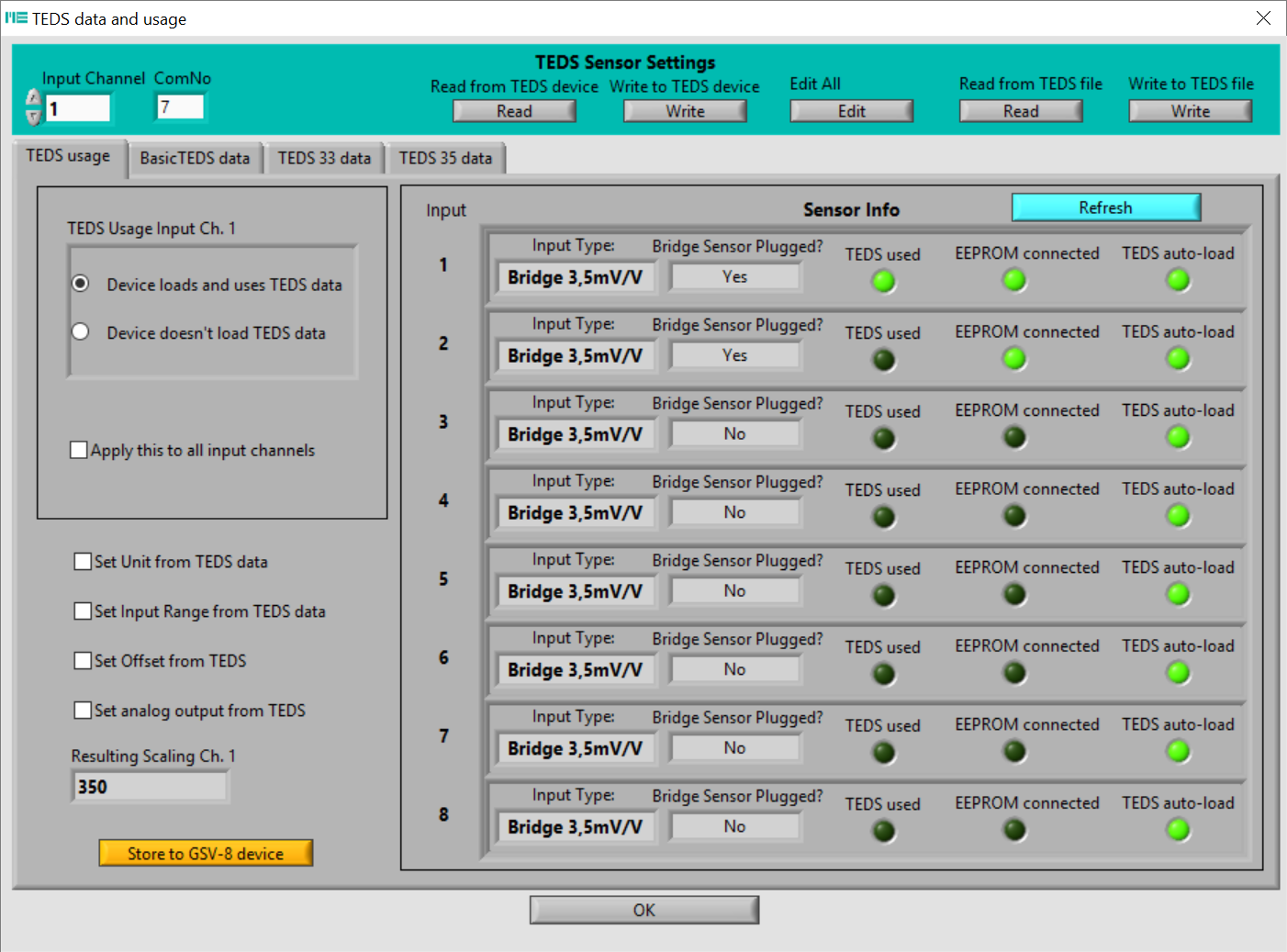

        From version 1.38 and GSV-8 from firmware 1.34, template 33 (2-point calibration for sensors) and template 35 (strain gauges) as well as the basic settings, e.g. serial number and manufacturer, are supported. The device behavior when using TEDS can be configured under "TEDS usage".

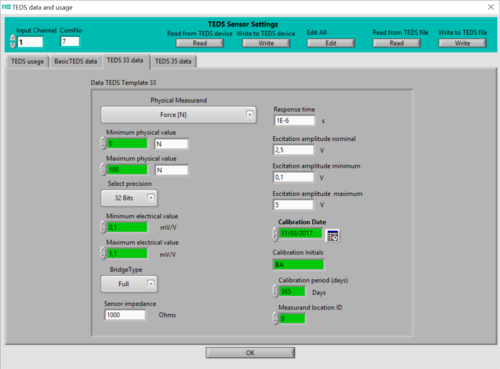

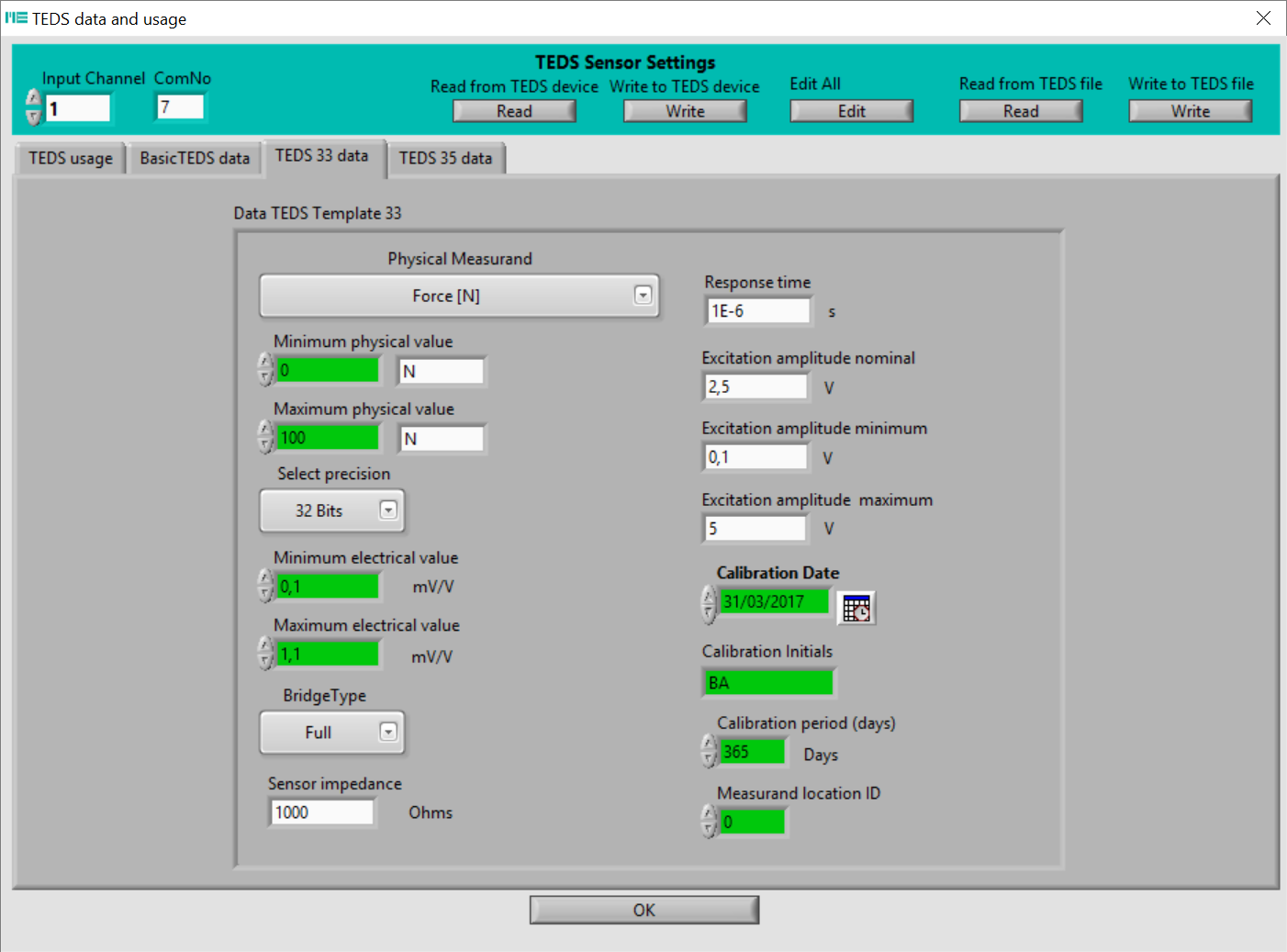

        TEDS Template 33 for 2-point calibration of sensors.

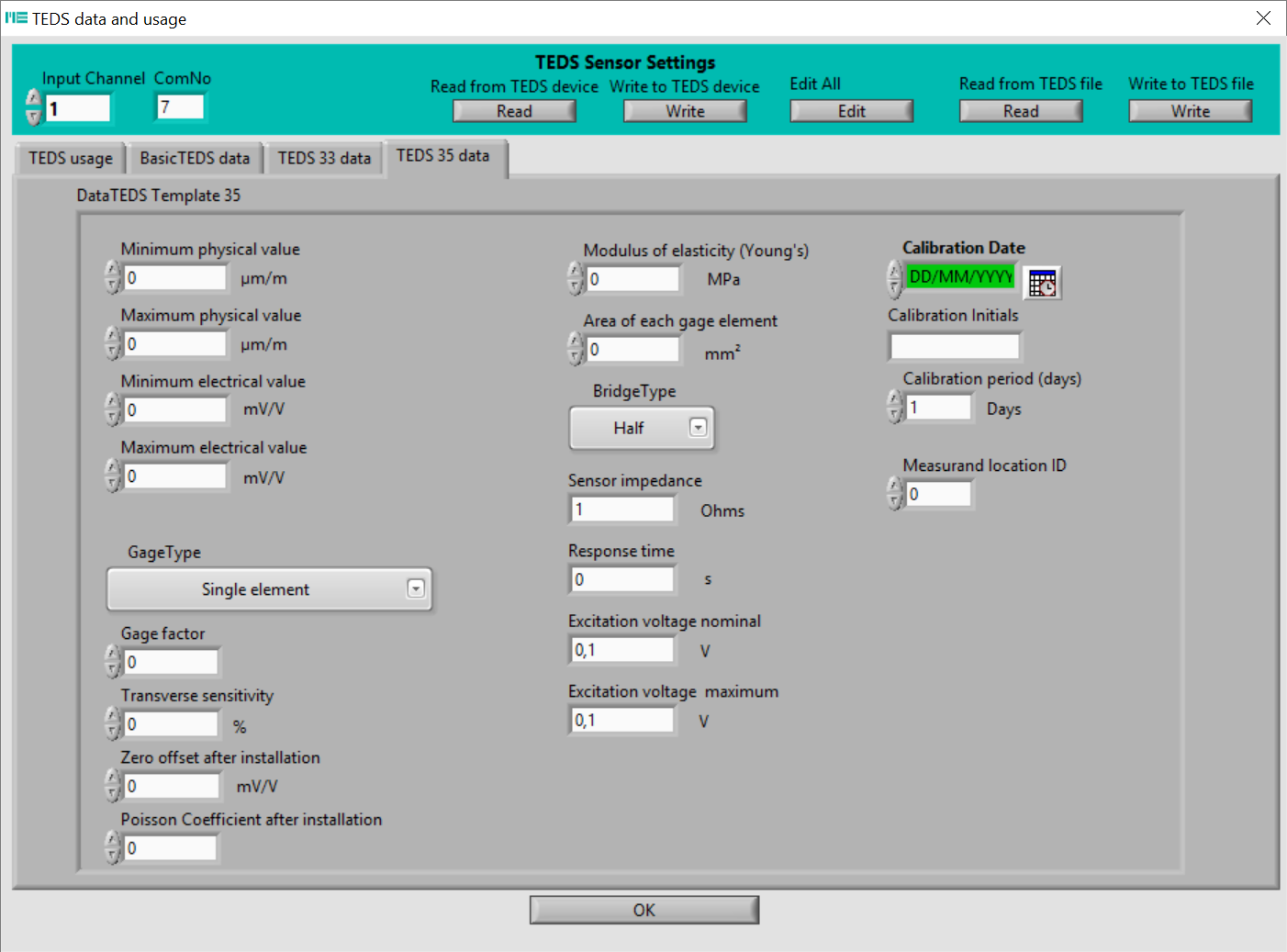

        TEDS Template 35 for applications with strain gauges

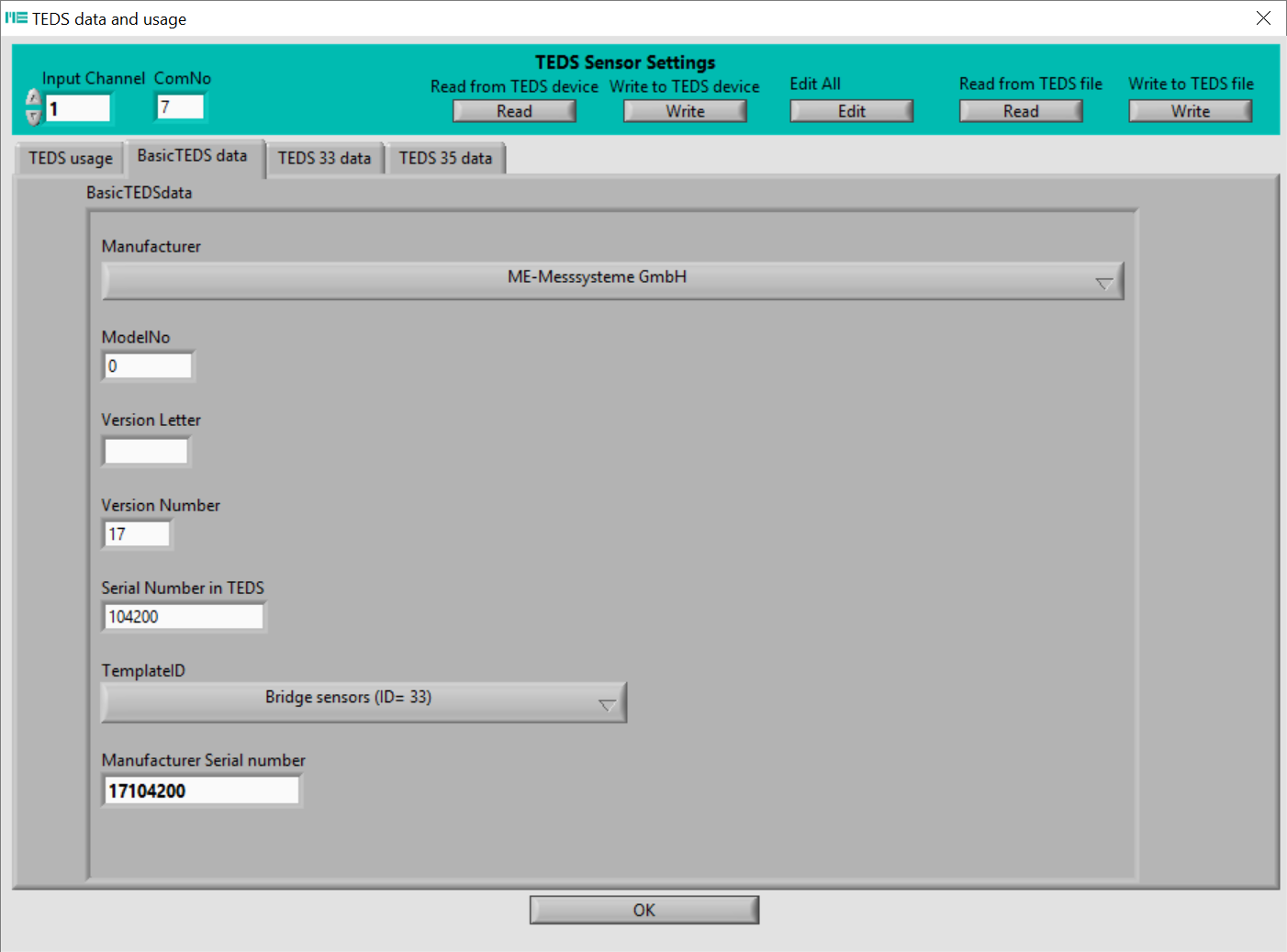

        TEDS Basic Template for entering the serial number and manufacturer
