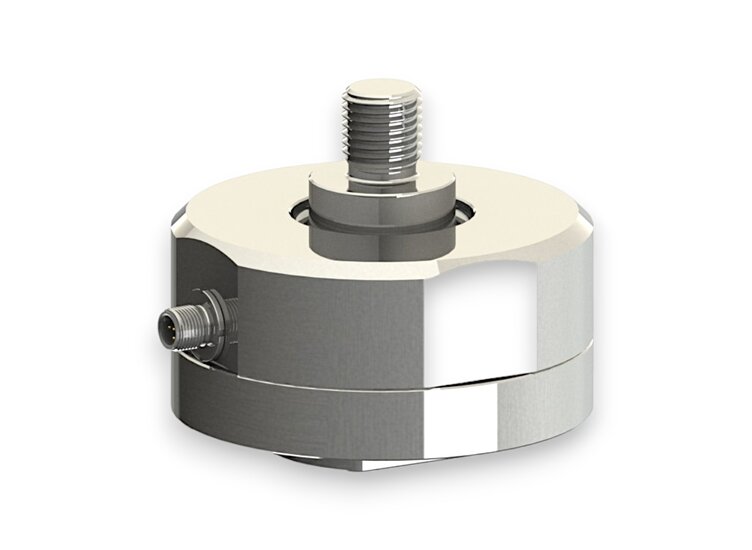

Art.Nr.: 13369

KM115z-IG 100kN/M12

  • Type: Tension and compression load cell
  • Rated force: 100 kN
  • Accuracy class: 0.2

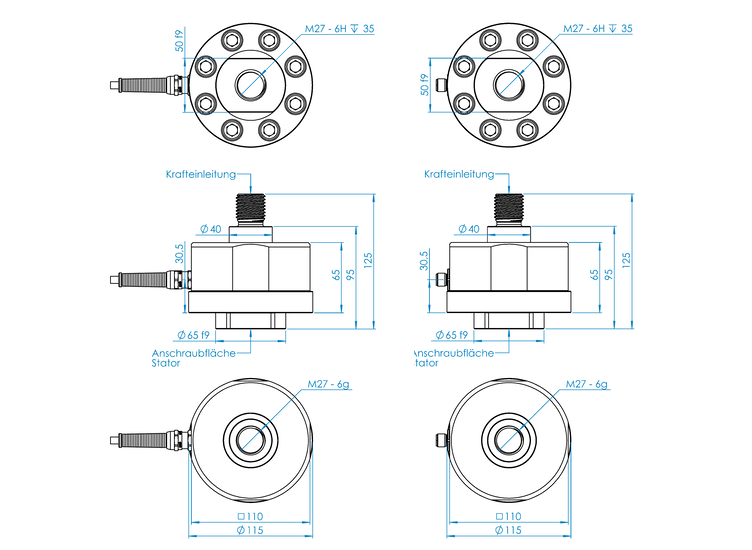

  • Dimensions: Ø115 mm x 125 mm
  • Force introduction: 1 x 30 mm external thread M27
  • Sensor fastening: 1 x 30 mm internal thread M27
  • Connection: M12 round plug, 4-pole, incl. connection cable: 5m, 5p/f/M12/5.0, Art.Nr. 3328
  • Material: stainless steel
  • Protection class: IP67
All details
Select variant:
Artikelbeschreibung
  • Type: Tension and compression load cell
  • Rated force: 100 kN
  • Accuracy class: 0.2
  • Dimensions: Ø115 mm x 125 mm
  • Force introduction: 1 x 30 mm external thread M27
  • Sensor fastening: 1 x 30 mm internal thread M27
  • Connection: M12 round plug, 4-pole, incl. connection cable: 5m, 5p/f/M12/5.0, Art.Nr. 3328
  • Material: stainless steel
  • Protection class: IP67
Highlights
  • low height of the sensor body
  • drag chain compatible connection cable
  • or integrated M12 round plug
Product description

The KM65z force sensor is a tension/compression force sensor in diaphragma construction. He is characterized by

  • a low height for the sensor body,
  • a central M22 external thread for force introduction for the 50 kN variants
  • a central M27 external thread for force introduction for the 100 kN variants
  • a central M22 internal thread for sensor fastening for the 50 kN variants
  • a central M27 internal thread for sensor fastening for the 100 kN variants

All variants are available with a permanently installed connection cable, Lapp drag chain cable FD/CP/Plus, or with a permanently installed M12 round plug connector, 4-pin.

The protection class of the sensor is IP 67.
