Art.Nr.: 3809

GSV-4USB

  • 4 - channel straingauge amplifier in aluminium housing
  • connection: round connector m12

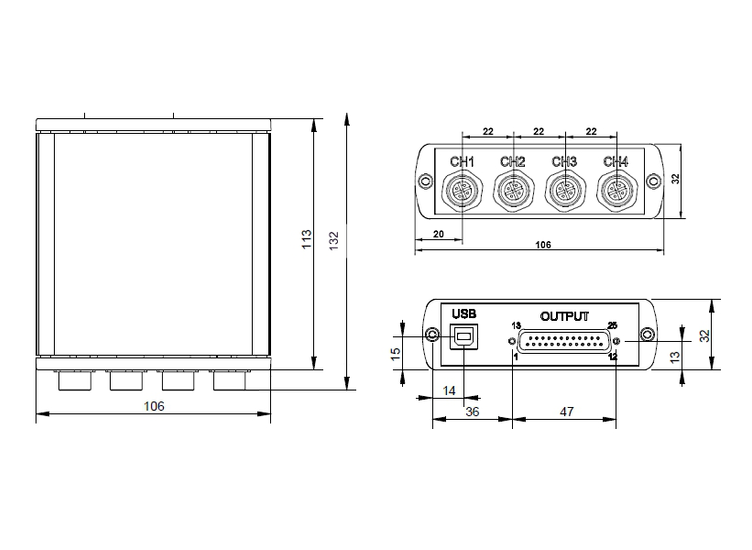

  • dimensions: 120 mm x 109 mm x 35 mm
  • interface: USB (RS232)
  • input sensitivity: 2 mV/V / 10 mV/V
  • limit frequency: 450 Hz
  • data frequency: till 500 Hz
  • supply voltage: 4,5 V..5,5 V DC
  • resolution: 16 Bit
  • trigger input
  • environmental protection: IP40
  • accessories (incl.): USB cable, plug Sub-D 25-pin
  • accessories (excl.): M12 round connector (male)
All details
Select variant:
Artikelbeschreibung
  • 4 - channel straingauge amplifier in aluminium housing
  • connection: round connector m12
  • dimensions: 120 mm x 109 mm x 35 mm
  • interface: USB (RS232)
  • input sensitivity: 2 mV/V / 10 mV/V
  • limit frequency: 450 Hz
  • data frequency: till 500 Hz
  • supply voltage: 4,5 V..5,5 V DC
  • resolution: 16 Bit
  • trigger input
  • environmental protection: IP40
  • accessories (incl.): USB cable, plug Sub-D 25-pin
  • accessories (excl.): M12 round connector (male)
Highlights
  • 4-channels
  • supply via USB Port
  • inputs for strain gauge / 0 – 5 V / 0 - 10 V / PT1000
  • measuring ranges 2 mV/V / 10 mV/V
  • strain gauge quarter / half and full bridges
  • 8 digital in- and outputs
  • Data rate 0 Hz – 500 Hz
Product description

The measuring amplifier GSV 4USB is a compact 4 channel measurement amplifier.

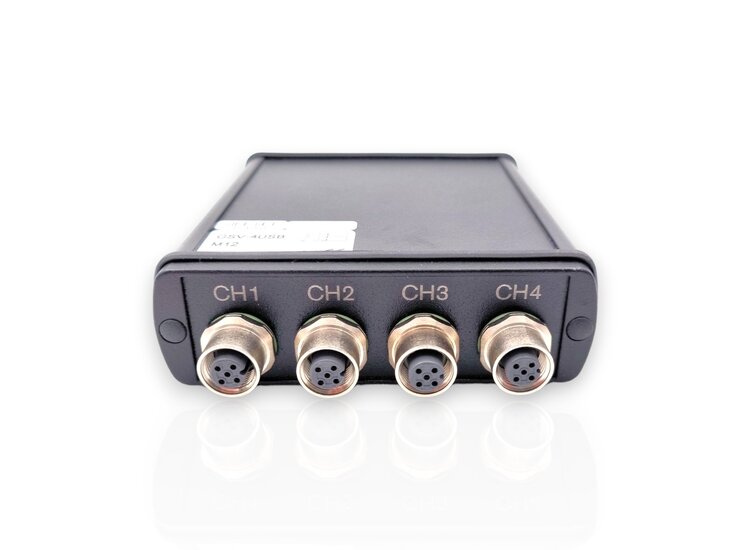

The amplifier GSV 4USB M12 has 4 pcs M12 round connectors for the sensor connection.
The GSV-4USB is configurable for measuremengts with strain gauges and other sensors, such as displacement sensors, temperature sensors and sensors with voltage output suitable.
Sampling frequencies from 0Hz to 500Hz are configurable.
No external power supply is needed due to power supply via USB port.

The analog inputs of the measuring amplifier GSV-4USB can be individually configured for strain gage full bridges, half bridges and quarter bridges 120 ohms, 350 ohms and 1k. Other inputs are 0 ... 5V and 0 ... 10V and PT1000.

In the variant with a SUB-D37 connector all input variants are accessible via SUbD37 Connector.
In the version with 4 pieces M12 connectors the device must be configured by solder bridges for the desired input type. PIN5 of M12 plug serves for all input variants different from straingage full- or halfbridge.

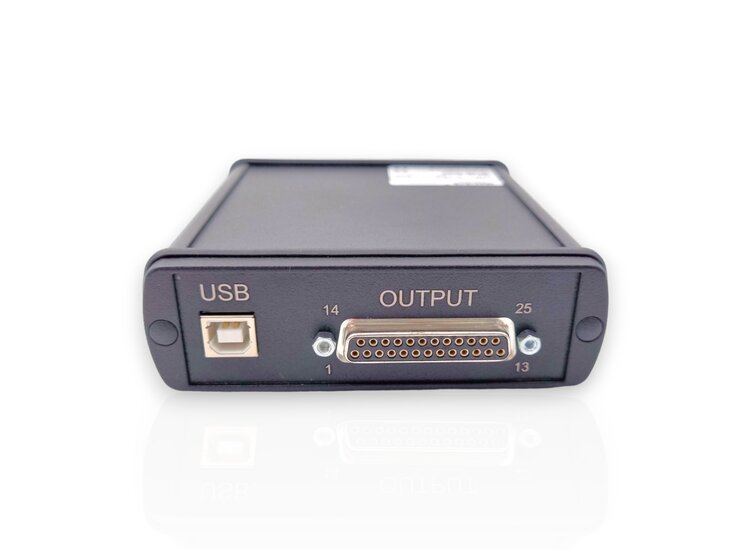

An RS232 interface is optionally available on the 25-pin SubD socket. In this case the USB port serves as power supply. The configuration is done at the factory as an order option.
