Art.Nr.: 3601

GSV-1A4 SubD37/2/250Hz

  • 4 - channel straingauge amplifier in aluminum housing
  • connection: plug connector SubD37
  • dimensions: 170 mm x 109 mm x 35 mm
  • analog output: ± 10V and 4 ... 20mA (zero signal = 12mA) via 15-pin SUB-D (female)
  • limit frequency: 250Hz
  • input sensitivity: 2 mV/V
  • supply voltage: 11 V..30 V DC

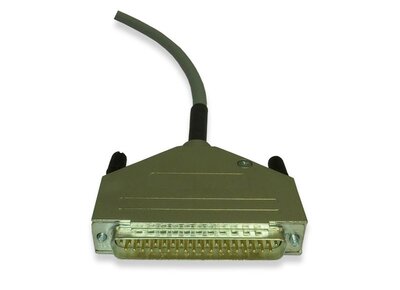

  • accessories (incl.): Mating connector SUB-D15 and SUB-D37, desktop power supply 18V/30W
All details
Select variant:
Artikelbeschreibung
  • 4 - channel straingauge amplifier in aluminum housing
  • connection: plug connector SubD37
  • dimensions: 170 mm x 109 mm x 35 mm
  • analog output: ± 10V and 4 ... 20mA (zero signal = 12mA) via 15-pin SUB-D (female)
  • limit frequency: 250Hz
  • input sensitivity: 2 mV/V
  • supply voltage: 11 V..30 V DC
  • accessories (incl.): Mating connector SUB-D15 and SUB-D37, desktop power supply 18V/30W
Highlights
  • Input sensitivity: 2 mV/V
  • 4 mV/V, 2 mV/V, 1 mV/V, 0.5mV/V configurable via jumpers
  • Output signals 10 V AND 12 mA+-8 mA on 15 pin Sub-D
  • Integrated half and quarter bridge completion for 350 ohm strain gauge
  • Tare function individually via control cables and together via control cables and switches
Product description

The measuring amplifier GSV-1A4 is a measuring amplifier with 4 independent channels for sensors with strain gauges such as force sensors, torque sensors, acceleration sensors or extension sensors.

This measuring amplifier is also suitable for connecting strain gauge full and half bridges from 87.5 ohm to 5000 ohm and strain gauge quarter bridges with 350 ohm.

The measuring amplifier GSV-1A4 is supplied with a plug-in 18 V power supply and SUB-D mating plugs.

The voltage and current outputs are at the 15-pin Sub-D socket and one ground for each analogue output. Both outputs have been calibrated and can be used at the same time.

The voltage output is ±10 V, the current output is 4...20 mA with zero adjustment to 12 mA  (12mA+-8mA).

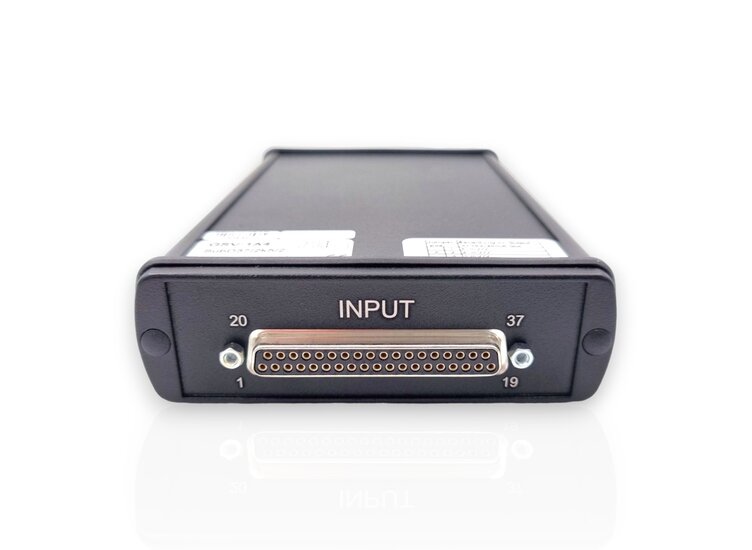

The sensor inputs, bridge completitions and the inputs for automatic zero adjustment of the individual channels are at the 37-pin Sub-D socket.

The bridge completion resistance with 0.1% tolerance for 350 ohm strain gauge is maintained. The quarter or half bridge mode can be set by the customer at the 37-pin Sub-D socket (see wiring diagram for 37-pin Sub-D socket).

As an option, it is possible to use the 6-wire technology of GSV-1L. The use of 6-wire technology must be configured to the circuit board.

GSV-1A4 M12 socket variant

The GSV-1A4 is optionally equipped with round connectors for the sensor connection.

The mating plugs must be ordered separately or are a component of the sensor.

Recommended products
LatestProducts
GSV-1A4 SubD37/2/250Hz
GSV-1A4 SubD37/2/250Hz.pdf
GSV-1A4 SubD37/2/250Hz

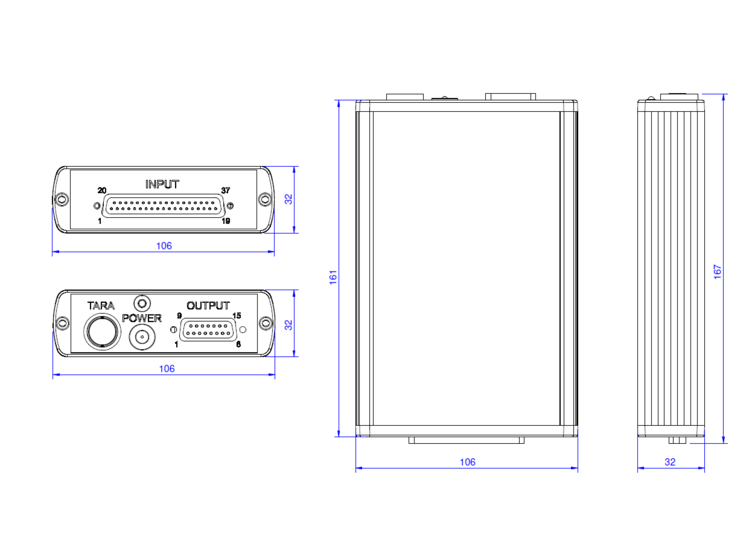

GSV-1A4-SubD37_2D_Zeichnung.pdf
