K6D110

Product.Nr.: 9724

Delivery time: approx. 3-4 weeks, please request via mail

  • Variant: 8kN/500Nm/MP11


Reset selection
    Please log in for prices.

Base price

Product configuration

  •  K6D-CalibrationMatrix SL SL/2
    Details
    + EUR 430,00
  •  GSV-6ETH SubD44HD
    Details
    + EUR 2.739,00
  •  GSV-8DS SubD44HD
    Details
    + EUR 2.948,00
  •  GSV-8DS CAN/SubD44HD
    Details
    + EUR 3.322,00
  •  GSV-8DS EC/SubD44HD
    Details
    + EUR 3.278,00
  •  GSV-8AS GSV-8AS
    Details
    + EUR 3.190,00
  •  GSV-8AS GSV-8AS CAN
    Details
    + EUR 3.564,00
  •  GSV-8AS GSV-8AS EC
    Details
    + EUR 3.520,00
  •  GSV-8AS GSV-8AS PI-3
    Details
    + EUR 3.575,00
  •  Connection cable MP11/f-D-Sub44HD/m/angled 5m
    Details
    + EUR 370,00
  •  Connection cable MP11/f-D-Sub44HD/m/straight 5m
    Details
    + EUR 360,00
  •  Connection cable MP11/f-M16/24p/m/angled 5m
    Details
    + EUR 390,00
  •  Adapter SubD44HD
    Details
    + EUR 24,00
  •  TCP-IP-Interface
    Details
    + EUR 164,00
  •  WLAN-Interface
    Details
    + EUR 373,00
Our apologies, but pricing information is not available for your country.

product description

  • type: 6-axis force- torque sensor;
  • nominal force: Fx: 8 kN, Fy: 8 kN, Fz: 20 kN;
  • nominal torque: Mx: 500 Nm, My: 500 Nm, Mz: 500 Nm;
  • accuracy class: 0.2%;
  • dimensions: Ø110 mm x 60 mm;
  • mounting and centering: 6 x female thread M10x1.5; 2 drill hole Ø6 mm E7;
  • integrated round plug connector (MP11);
  • material: aluminium alloy;
  • weight: 880g;

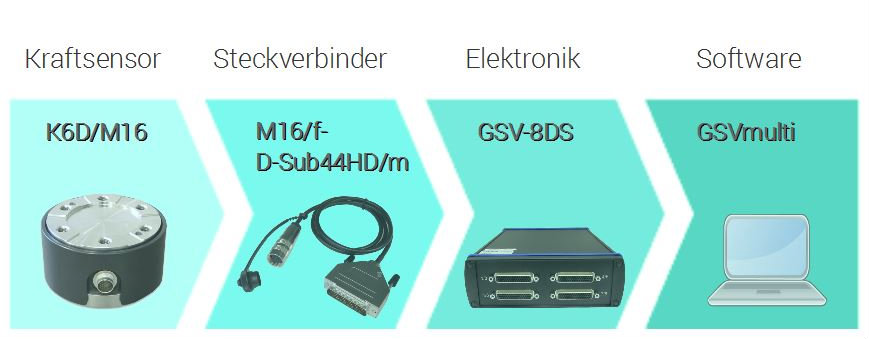

required accessories:

  • calibrationmatrix SL;
  • cable configuration or connection cable with SubD44HD (for GSV-8DS) or M16, 24-pol., Typ 423 (for GSV-8AS)

recommended accessories:

  • amplifier GSV-8DS SubD44HD, GSV-8AS;
  • calibrationmatrix SL/Plus;
Learn more about the 6-axis multi component sensors: K6D::Info



Special variants in a new 6-axis design possible!

According to your wishes, we manufacture the K6D sensors with smaller and larger dimensions.

For more information, look at the PDF file.



K6D-Special_variants.pdf
