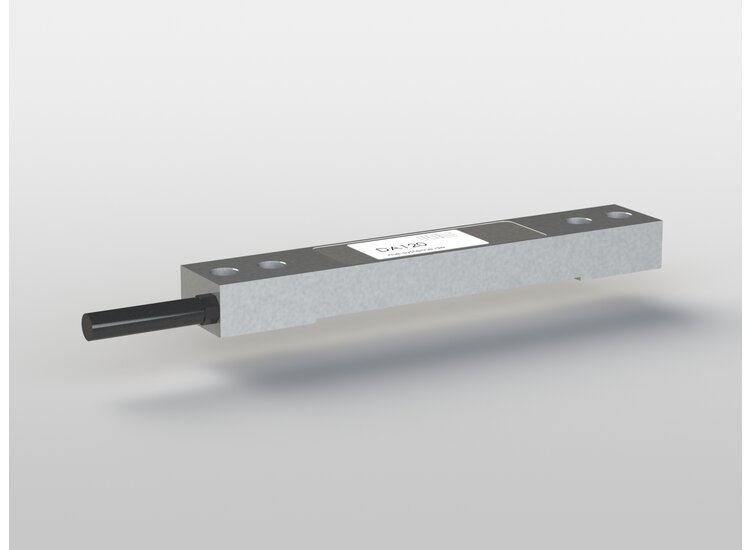

Strain sensor 120mm x 20mm x 11mm, integrated Electronic GSV-15L, 0-10V output signal, 5m cable
Strain sensor 120mm x 20mm x 11mm, integrated Electronic GSV-15L, 0-10V output signal, 5m cable
Strain sensor 120mm x 20mm x 11mm, integrated Electronic GSV-15L, 0-10V output signal, 5m cable
Strain sensor 120mm x 20mm x 11mm, integrated Electronic GSV-15L, 0-10V output signal, 5m cable
Art.Nr.: 3214

DA120e 010

***SALE: Only as long as stocks last ***

  • type: strain sensor
  • accuracy class: 0,5

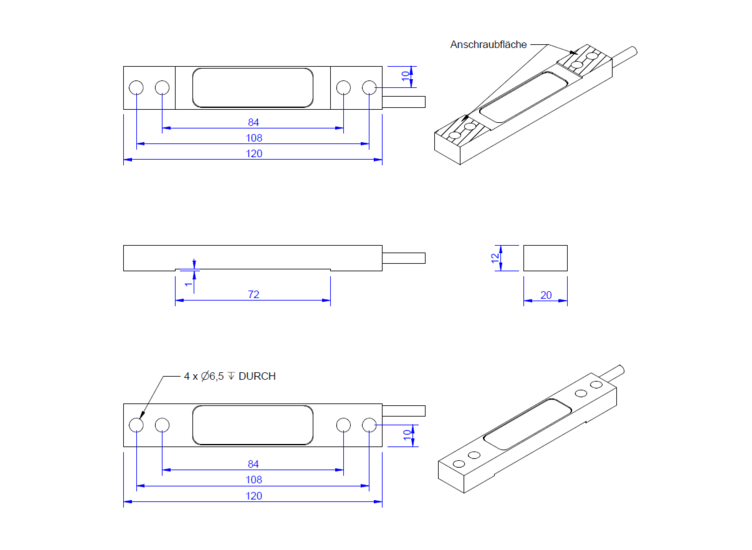

  • dimensions:  120 mm x 20 mm x 12 mm
  • mounting: 4x M6
  • connection: 5m cable Unitronic FD CP Plus 7x0,14
  • material: Steel, zinc-plated
  • integrated amplifier: GSV-15L 010/105/3,5
  • Digital Input for automatic Zero Adjustment
  • Digital Input for autoscale
  • Digital Threshold output

Accessories:

  • 4 Bolts M6x20, strenght category 10.9
  • Activator-11 and Loxeal-8521



All details
Select variant:
Artikelbeschreibung

***SALE: Only as long as stocks last ***

  • type: strain sensor
  • accuracy class: 0,5
  • dimensions:  120 mm x 20 mm x 12 mm
  • mounting: 4x M6
  • connection: 5m cable Unitronic FD CP Plus 7x0,14
  • material: Steel, zinc-plated
  • integrated amplifier: GSV-15L 010/105/3,5
  • Digital Input for automatic Zero Adjustment
  • Digital Input for autoscale
  • Digital Threshold output

Accessories:

  • 4 Bolts M6x20, strenght category 10.9
  • Activator-11 and Loxeal-8521



Highlights
  • is suitable for measurements in harsh environments due to its enclosed design
  • contains integrated GSV-15L evaluation electronics
Product description

Thanks to its closed construction, the DA120 strain sensor is suitable for measuring strain and force on machine elements and components in harsh environments.
Easy installation by screwing on with 4 M6 screws. Mechanical strain on the component is transferred to the strain sensor using via 4 fixing screws and is transformed into an electrical output signal.
Example applications include force monitoring level measurement.
Output signal, thermal behaviour and transmission ratio depend on the geometry and combination of materials. Therefore, calibration is performed by applying of a force.

The Strain sensor DA120e is implemented for the measurement of loads. Application areas are machines, buildings, vehicules, containers and silos. The strain sensor must be fastened with 4 bolts M6. The strain on the surface of the constructional element is measured by the strain sensor due to the bolted-assembly.

The “DA120e” strain sensor includes an integrated GSV-15L measuring amplifier. The measuring amplifier has a voltage- or current output and a threshold value output. Amplification, zero point and threshold value can each be programmed via a digital input.
